digital gear selector indicator

[Mitsuru]

Here is a D.I.Y. mod if you want it.

I was looking at how to display what gear the automatic transmission
was in, but realised that as the system would need to read the bus
system that most cars have I could just show what option the gear
selector was in!

Which means that this info could be used for manual or automatics
gear indicator.



Here is a list of parts you will need.

-6(maybe more depending on where you decide to mount them) Off in resting position magnetic switches.
-A butt load of wire
-27 diodes
-7 5200ohm resistors
-PC board
-Enclosure box
-2 female 9 pin connectors
-2 male 9 pin connectors
-solder
-15watt iron w/ very small tip
-very good soldering skills
-several burns and curse words

this circuit needs to be made VERY small so you can hide it in enclosure and hide it under the cup holder/shifter area.

please note I nicked the above from the Honda civic forum
http://www.8thcivic.com/forums/do-yours ... cator.html

But if I use one of these I would get a good set of capital letters.
P, R and N

[Mitsuru]

I've emailed a company that makes one for Motorbikes

http://www.ebay.co.uk/itm/Digital-Gear- ... 45f5ec6ae4



Which already has a N for neutral as well the option of upto 5 gears
Wiring instructions for theirs
--Red & White: Power supply
--Green: Neutral Gear (displayed in Yellow colour)
--Brown & Yellow: 1st Gear
--Black & Green: 2nd Gear
--Green & Blue: 3rd Gear
--Yellow & Blue: 4th Gear
--Brown & Red: 5th Gear

Specifications:
Color: Black
Display color: Red (except for Neutral – displayed in yellow)
Display dimensions: 19mm [L] X 13mm [H] X 7mm [D]
Lead length: 18cm
Includes: 6 gauge wire connection, power supply wire.

I will let you know when and if they get back to me!

[jimmyybob]

Or do what normal people do and buy one from http://www.dakotadigital.com/index.cfm/ ... cat401.htm ready to go.

[Mitsuru]

Normal people don't like being ripped off!
Did you notice that site didn't display prices straight off!

And each car is different.

[Mitsuru]

Just as a matter of interest.
How many people would want one of these on their car?

I found a company that manufactures the alpha numeric
led digital display in blue but only sells them in batches
with a minimum of 8 per order.
LED display size 0.5'' (12.7mm)

Just incase the company I emailed doesn't do anything,
I was debating on making a couple when the weather is
too bad to do anything out side.

[Mitsuru]

The below is the reply I have just received about that
email I sent to the ebay company.

Dear ****,

Thanks for your email.

I am sorry to let you know that we don't have the gear
indicator as your description.

Best regards,
funky-ghs

So it is going to be a totally home made kit/project!

[Mitsuru]

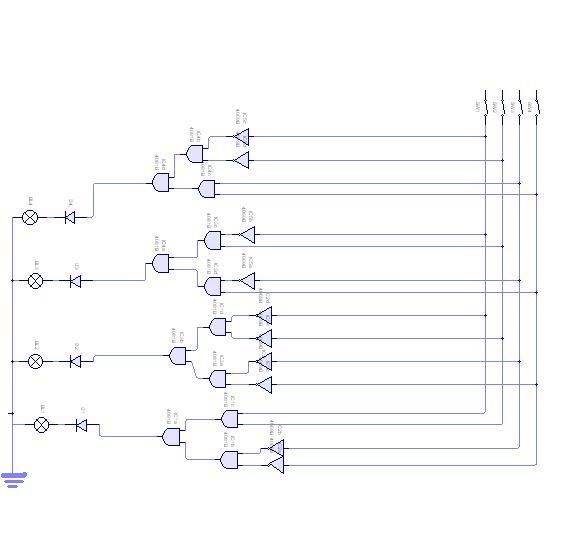

Been a while since I did circuit diagrams for electronics.
And this is a first attempt with 'and' gates with 'inverters'



Yes I know it's a fail as if no power to the solenoids , means
no power to the led/bulb/digital display!

And I'm using a demo program for this which won't let me
run it only plan it so no fault finding!

[Mitsuru]

While I was looking at alpha numeric displays and circuits
wiring, I came across this home made instrument cluster.



http://forum.diyefi.org/viewtopic.php?f=37&t=789

Just thought I'd share it, as it has wiring and circuit diagrams.

[Mitsuru]

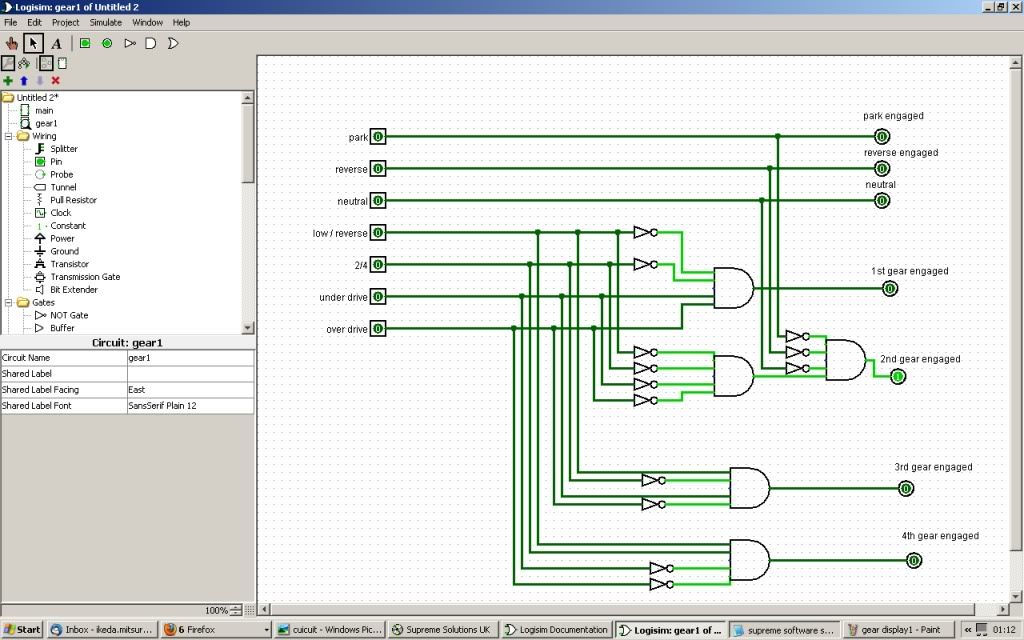

After getting a copy of software that can test a circuit I came up with this.

[JPB]

A circuit diagram that actually shows the components within those IC would be handy for those of us who may want to build a discrete version for a different but related purpose please.....
